Distributes incoming traffic across multiple servers so no single server gets overwhelmed. Like a traffic cop directing cars to different lanes.
In short
A load balancer sits in front of a pool of servers and spreads incoming requests across them, so no single server is overwhelmed and the service keeps working even if some servers fail. It is the piece that turns a group of ordinary machines into one scalable, highly available endpoint.
In short
A load balancer sits in front of a pool of servers and spreads incoming requests across them, so no single server is overwhelmed and the service keeps working even if some servers fail. It is the piece that turns a group of ordinary machines into one scalable, highly available endpoint.
Learn it in the course
This page is the free part.
₹1,111 in India$25 everywhere elseonce, for the whole course
The System Design course covers Load Balancer across a run of lessons, not one page. These 3 alone are about 94 minutes of step-by-step reading, every one with a quiz.
How traffic actually gets spread across many servers, and what breaks when it does not.
How load balancer failover works with a shared virtual IP, VRRP and keepalived. Also covers ALB health checks and failover across zones.
How load balancers decide which server gets the next request. Round Robin, Weighted, Least Connections, IP Hash, and more.
all part of
System Design Masterclass
770 lessons · about 287 hours · 18 free to read
₹1,111in India, by UPI
$25everywhere else, by PayPal
It is really nice and good Please join the course
You own this course
Continue with Load Balancingpay once,
yours for life
A single server can only handle so many requests per second before it slows down or falls over. The way you grow past that is to run many servers, but then something has to decide which server each incoming request goes to. That something is the load balancer.
It gives you two things at once. The first is scale: traffic is spread across the pool, so ten servers can handle roughly ten times the load of one. The second, and often more important, is availability. The load balancer constantly checks whether each server is healthy, and if one dies it simply stops sending traffic there while the rest keep serving. Users never see the failure. A load balancer in front of a pool is what turns a set of fragile single machines into one resilient service behind a single address.
The load balancer needs a rule for choosing a backend. Round-robin just goes down the list in order, server one, two, three, then back to one, which is simple and spreads evenly when all requests cost about the same. Least-connections sends each new request to whichever server currently has the fewest active connections, which is better when some requests are much heavier than others. Hash-based routing, for example hashing the client IP, always sends the same client to the same server, which matters when a server holds session state for that user, often called sticky sessions.
Weighted versions of these let a bigger server take a larger share. The right choice depends on whether your requests are uniform, whether your servers are equal, and whether any per-user state is pinned to a particular machine.
Round-robin load balancing
Incoming requests hit the load balancer, which spreads them evenly across the backend servers so no single one is overwhelmed.
Load balancers operate at one of two levels of the network stack. A layer 4 load balancer works at the transport level, looking only at IP addresses and TCP or UDP ports. It does not read the actual request, so it is extremely fast and protocol-agnostic, but it cannot make decisions based on content.
A layer 7 load balancer works at the application level and can read the HTTP request itself: the path, the headers, the cookies. That lets it route smartly, sending /api requests to one pool and /images to another, terminating TLS, or doing path-based and host-based routing. It does more work per request, so it is a little slower, but the routing intelligence is usually worth it for web traffic. Most modern application load balancers, like AWS ALB, are layer 7.

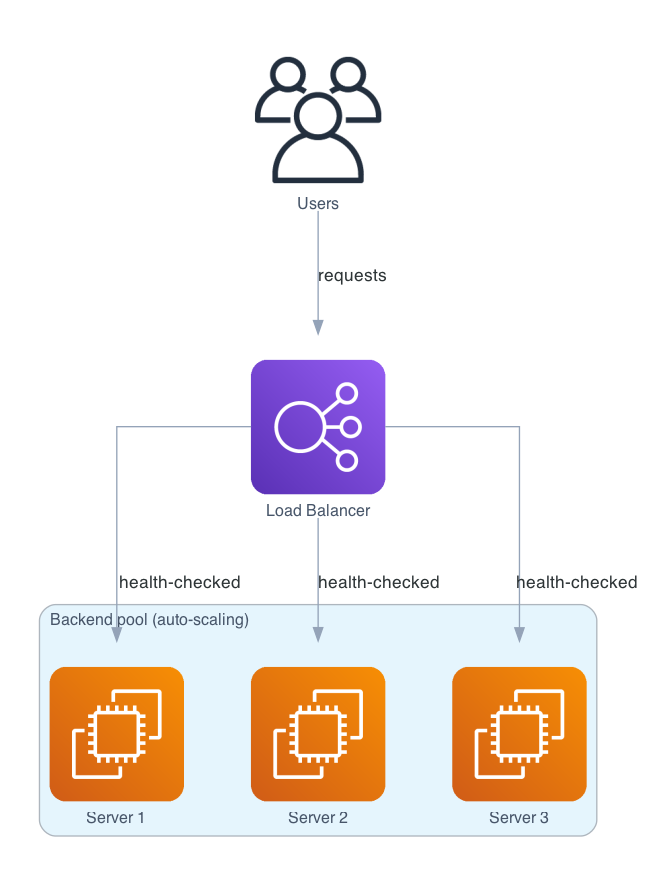

In a real system
Users hit one address, the load balancer. It health-checks the backend pool and forwards each request to a healthy server, so the pool can grow, shrink, or lose a node without users noticing.
The mechanism that makes a load balancer trustworthy is the health check. It periodically pings each backend, often hitting a /health endpoint, and only routes to servers that respond correctly. A server that fails is taken out of rotation automatically and added back when it recovers. This is what makes rolling deployments and surviving a crashed instance invisible to users.
One catch: the load balancer itself can become a single point of failure, since all traffic flows through it. Production setups solve this by running the load balancer redundantly, with a standby that takes over via a floating IP, or by using a managed, already-redundant service from a cloud provider. Often there is also DNS-level balancing in front, spreading traffic across multiple load balancers in different regions.
This page explains what a load balancer is. If you are asked to design one, read the load balancer system design guide. It covers layer 4 and layer 7 together, the power of two choices, consistent hashing, health checks worked out with real AWS default settings, draining during deploys, and how to stop the load balancer itself from being a single point of failure.
NGINX
Widely used as a software layer 7 load balancer and reverse proxy, with round-robin, least-connections, and hash-based methods built in.
AWS Elastic Load Balancing
Managed, already-redundant load balancers: ALB for layer 7 HTTP routing and NLB for high-throughput layer 4 traffic.
HAProxy
A fast, battle-tested open-source load balancer used in front of huge sites for both layer 4 and layer 7 balancing.
Cloudflare
Balances and health-checks traffic across servers and regions at the network edge, close to users.
A load balancer sits in front of a pool of servers and distributes incoming requests across them, so no single server is overwhelmed and the service stays up even if some servers fail. It presents one address to clients while spreading the work behind it.
Common ones are round-robin (go down the list in order), least-connections (send to the server with the fewest active connections, good for uneven request costs), and hash-based or sticky sessions (always route a given client to the same server, needed when a server holds that user's session state). Weighted variants give bigger servers a larger share.
A layer 4 load balancer routes on IP and TCP/UDP ports without reading the request, so it is very fast and protocol-agnostic. A layer 7 load balancer reads the HTTP request (path, headers, cookies) and can route on content, terminate TLS, and do path- or host-based routing, at a small performance cost. Most web application load balancers are layer 7.
It runs periodic health checks against each backend and only routes to servers that respond correctly. When a server fails its check it is automatically taken out of rotation while the others keep serving, and it is added back when it recovers, so the failure is invisible to users.
It can be, since all traffic flows through it. Production setups avoid that by running the load balancer redundantly with a standby that takes over via a floating IP, using a managed already-redundant cloud load balancer, and often adding DNS-level balancing across multiple load balancers in different regions.
