Start LearningThe short answerTCP makes sure every byte arrives, in order, and slows the sender down when the other side cannot keep up; UDP sends each message once and never checks, so pick TCP when every byte must arrive (web pages, payments, files) and UDP when late data is useless (live calls, games, quick lookups).
Transmission Control Protocol
the careful courier
User Datagram Protocol
the postcard
Read across a row to compare one thing. Every word that may be new is explained just below the table.
| Aspect | TCP | UDP |
|---|---|---|

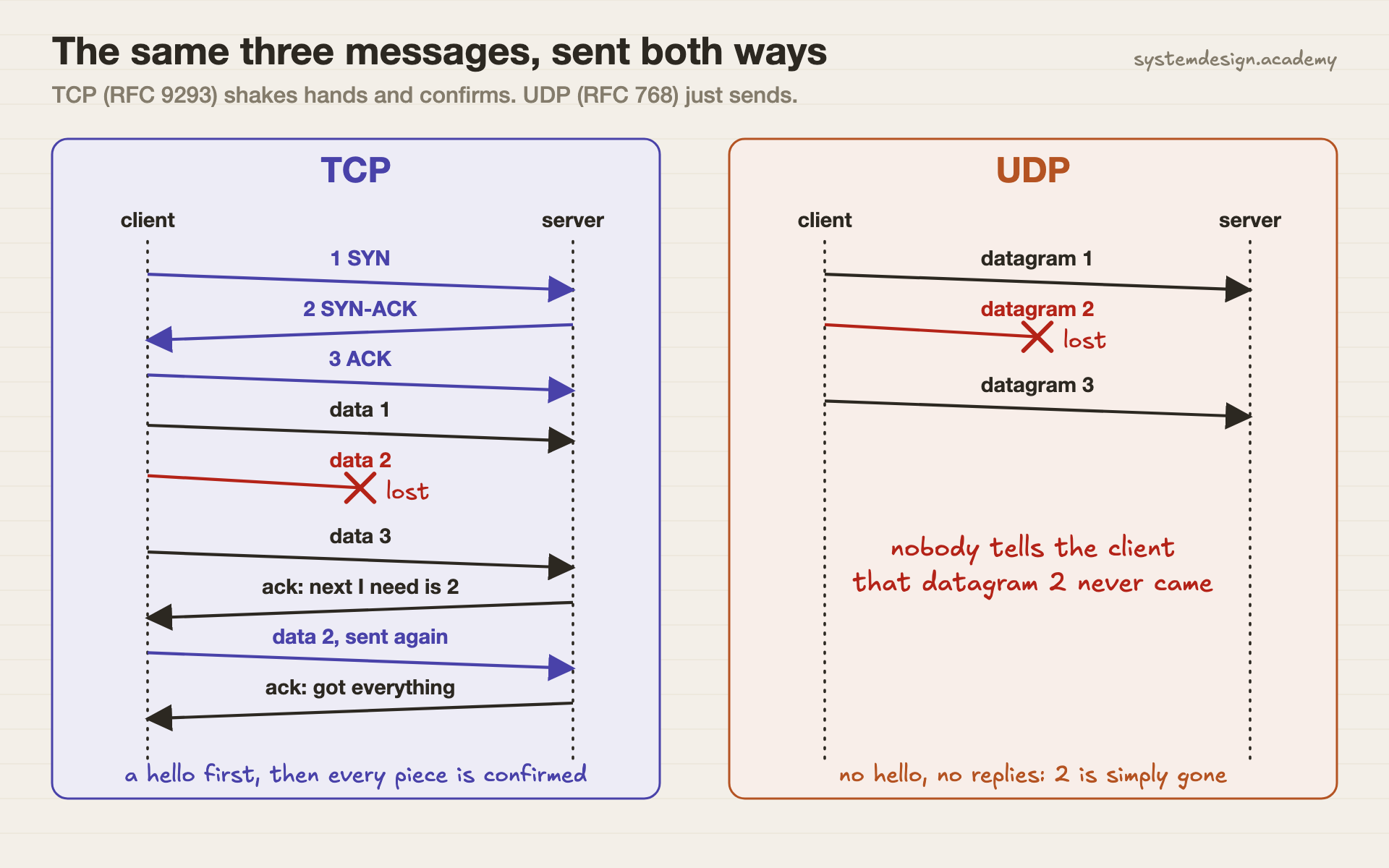

| Connection | Yes. A three-way handshake (SYN, SYN-ACK, ACK) before data. | None. The first packet already carries data. |
| Delivery | Every byte arrives, or the app is told the connection broke. | Best effort. A lost datagram is simply gone, and nobody is told. |
| Order | Kept. Bytes reach the app in the order they were sent. | Not kept. The app must sort messages itself if it cares. |
| Shape of the data | One long stream of bytes. Message edges are not kept. | Separate messages. Each datagram arrives whole or not at all. |
| Header size | 20 bytes at least, up to 60 with options. | 8 bytes, always. |
| Speed control | Flow control and congestion control slow the sender down. | None. The sender goes as fast as it likes. |
| Time to first byte | Waits one round trip for the handshake (more with TLS). | No wait. Data leaves at once. |
| Broadcast, multicast | No. One connection joins exactly two programs. | Yes. One datagram can go to many receivers. |
| Common uses | Web pages over HTTP/1.1 and HTTP/2, SSH, email, database connections. | DNS lookups, voice and video calls, online games, QUIC and HTTP/3. |
| Defined in | RFC 9293 (August 2022), which replaced RFC 793 from 1981. | RFC 768 (August 1980). Three pages long. |
Real situations, and the pick we would make in each one.
A missing byte here means a wrong amount or a broken query. TCP's resends are exactly what you want.
Every byte matters and a short wait is fine. HTTP/1.1 and HTTP/2 both run on TCP.
A sound that arrives half a second late is worse than a tiny gap. Resending old audio only adds delay.
The next update replaces the last one, so a lost update does not need to come back.
One small question, one small answer, no handshake to wait for. Servers must also support TCP for big answers (RFC 7766).
HTTP/3 uses QUIC, which runs on UDP but rebuilds resends and order itself. You get UDP's speed and TCP-like safety.
we ran this, here is what happened
Most pages say UDP "may lose data". We wanted to see it happen, on a normal laptop, with no tricks.
We wrote one small Python script. It sends 20,000 numbered messages of 512 bytes from one program to another on the same Mac. The reader is slow on purpose: it pauses for 1 millisecond after every 50 messages. Many real apps are slow like this when they are busy.
We ran the same test twice, once over UDP and once over TCP, and counted which numbers arrived. Nothing is simulated. Any loss you see is the real operating system throwing data away.
Where it ran: Apple M4, macOS 15.6, Python 3.12.14, 127.0.0.1 (the same machine). Receive buffer set to 64 KB. Three full runs on 4 October 2026.
# UDP: the sender never waits for the reader
for i in range(N):
tx.sendto(struct.pack("!I", i) + body, (HOST, port))
# the reader: slow on purpose
data, _ = sock.recvfrom(4 + PAYLOAD)
got.append(struct.unpack("!I", data[:4])[0])
if pause and len(got) % READ_PAUSE_EVERY == 0:
time.sleep(0.001)
# TCP: the same messages over a connection
tx.connect((HOST, port)) # the three-way handshake happens here
for i in range(N):
tx.sendall(struct.pack("!I", i) + body)"udp": {
"sent": 20000,
"received": 5969,
"lost": 14031,
"lost_pct": 70.16,
"first_missing_number": 169,
"sender_seconds": 0.3649
},
"udp_fast_reader_paced_sender": { "sent": 20000, "received": 20000, "lost": 0 },
"tcp": {
"sent": 20000,
"received": 20000,
"lost": 0,
"all_in_order": true,
"connect_ms": 0.141,
"sender_seconds": 0.6246,
"netstat_while_open": [
"tcp4 0 0 127.0.0.1.55240 127.0.0.1.55241 ESTABLISHED",
"tcp4 0 0 127.0.0.1.55241 127.0.0.1.55240 ESTABLISHED",
"tcp4 0 0 127.0.0.1.55240 *.* LISTEN"
],
"netstat_after_close": [
"tcp4 0 0 127.0.0.1.55241 127.0.0.1.55240 TIME_WAIT"
]

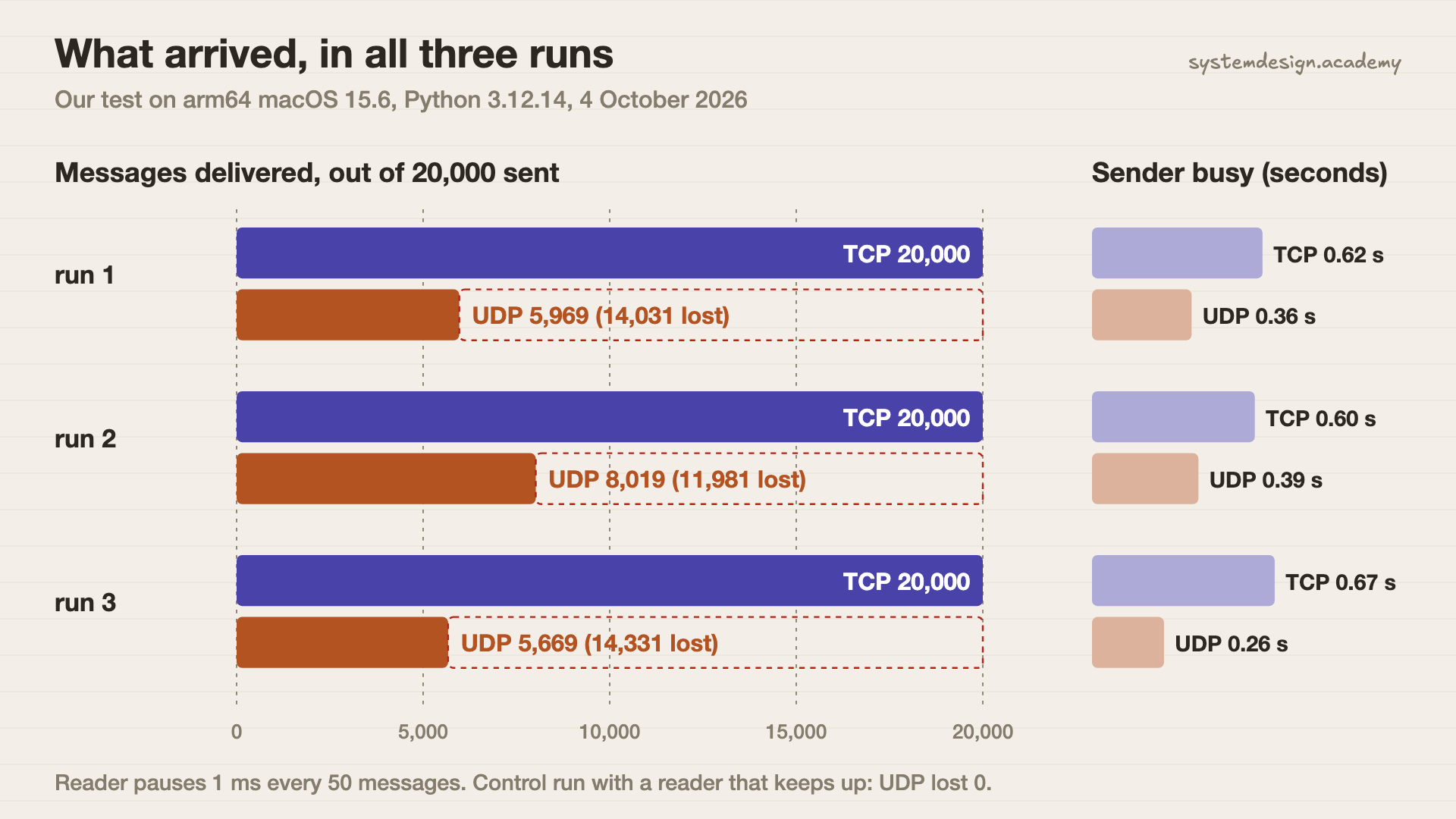

}| What we measured | TCP | UDP |
|---|---|---|
| Messages that arrived (of 20,000)UDP lost 60% to 72% across three runs | 20,000 in all 3 runs | 5,669 to 8,019 |
| In the order they were senton one machine UDP did not reorder; across a real network it can | Yes, every time | Yes, but with gaps |
| Time the sender spent sendingTCP waited for the slow reader; UDP did not | 0.60 to 0.67 s | 0.26 to 0.39 s |
| Connection left behind after closingread from netstat | TIME_WAIT | nothing |
What this shows
UDP was faster for the sender because it never waited. That speed is exactly why 70% of the messages were thrown away. TCP took about twice as long and delivered all 20,000, in order. Then a control run settled one more thing: with a reader that keeps up, UDP lost nothing. UDP is not broken. It just never protects you from a full buffer.
What this test does not show: This is one machine, so there is no real network in between. Loss here comes from a full buffer, not from a bad Wi-Fi link. We could not capture packets with tcpdump, because that needs admin rights on macOS. Instead we read TCP's connection states from netstat. The script is scripts/labs/compare/tcp_vs_udp.py in our repository.
"UDP is faster, so use it for speed."
UDP saves the handshake and the waiting. If you then need every message, you must rebuild resends yourself, and that is most of TCP. Measure before you switch.
"UDP always loses data."
In our control run, with a reader that kept up, UDP delivered all 20,000 messages. It loses data when something is full or a link is bad, and it does not tell you.
"TCP means my message arrives as one piece."
TCP is a byte stream. Two sends can arrive in one read, or one send in two reads. Put a length or a separator in front of each message.
"HTTP is always TCP."
HTTP/1.1 and HTTP/2 run on TCP. HTTP/3 runs on QUIC, which runs on UDP. The IANA port list has port 443 registered for both.
Ignoring head-of-line blocking.
On TCP, one lost packet makes every later byte wait for the resend. That is a big reason QUIC was built on UDP with separate streams.

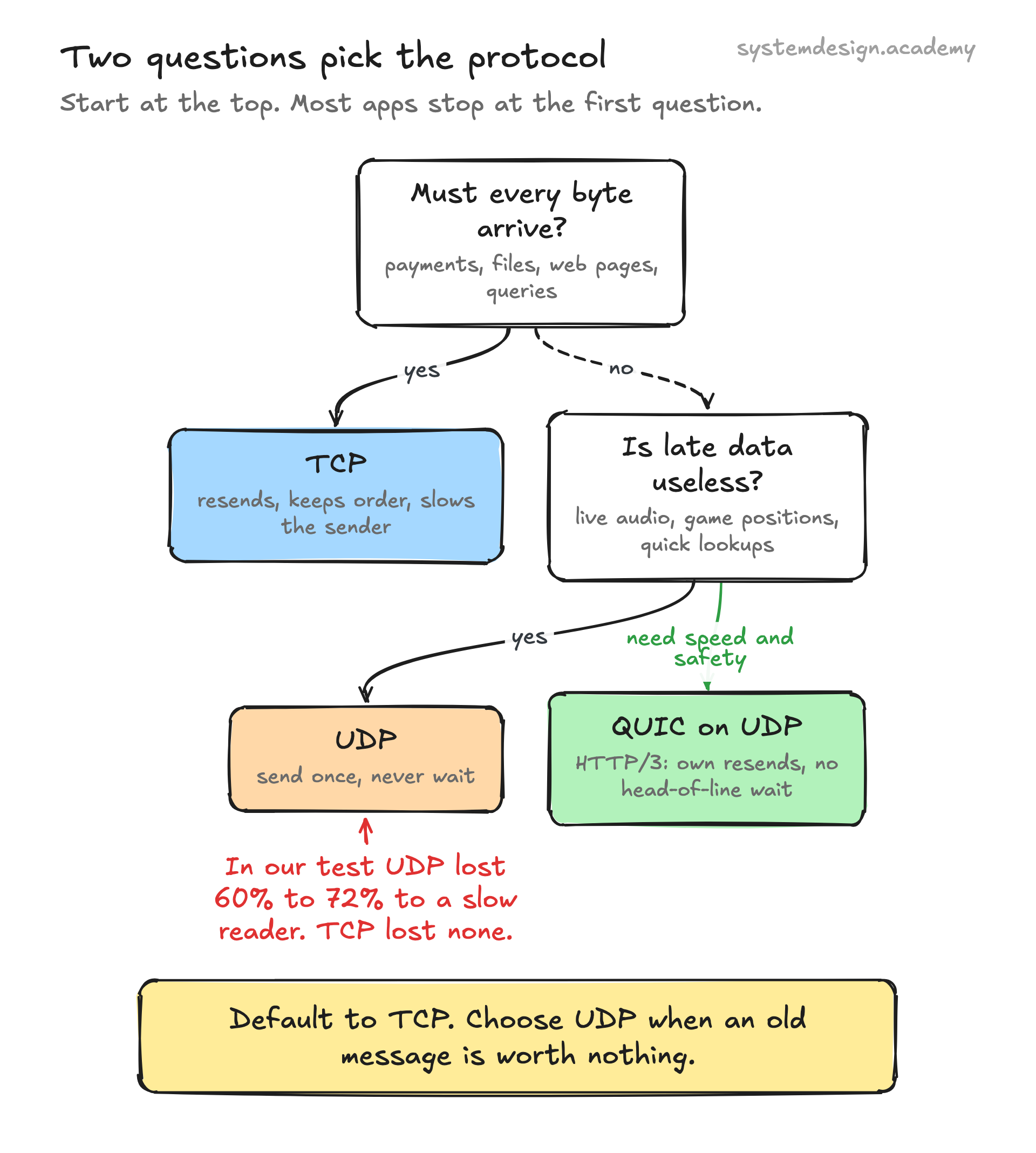

Use TCP unless you have a clear reason not to. Choose UDP when old data is worthless (live audio, game positions), when you need broadcast, or when you use a protocol like QUIC that adds its own reliability on top of UDP.
UDP starts sooner, because it has no handshake, and the sender never waits. In our test the UDP sender finished in about 0.3 seconds and the TCP sender in about 0.6. But the UDP run lost 60% to 72% of the messages. Fast and complete are different things.
Both. IANA, the group that keeps the official port list, registers port 443 (HTTPS) for TCP and for UDP. Classic HTTPS uses TCP 443. HTTP/3 runs over QUIC, which uses UDP.
Netflix says its Open Connect servers send video over HTTP and HTTPS, which normally run on TCP. A movie can buffer seconds ahead, so a resent packet costs nothing you can see. Live calls cannot buffer like that, which is why they prefer UDP.
Yes. TCP and UDP keep separate lists of ports. DNS is a good example: port 53 is registered for both, and RFC 7766 says DNS servers must support both.
A little. RFC 768 gives UDP a checksum, a small number used to spot a damaged datagram. A damaged one is dropped. Nothing is resent, and the sender is never told.
